Selecting the correct diameter for uhmwpe ropes is a critical decision that balances safety, operational efficiency, and cost. Ultra-High Molecular Weight Polyethylene (UHMWPE) has revolutionized the maritime and industrial sectors. It offers a High strength alternative to heavy steel wire, yet it floats on water. However, simply picking the thickest rope available is not an "Expert Insight." In fact, over-specifying diameter can lead to compatibility issues with winches and sheaves, while under-specifying creates catastrophic safety risks.
This guide focuses on the technical nuances of choosing the right diameter for heavy-duty towing and mooring. We will explore how to calculate the Minimum Breaking Load (MBL), the impact of Hollow braided vs. Double braided constructions, and why Abrasion resistant coatings matter in diameter selection. Whether you are managing a fleet of tugboats or overseeing Industrial lifting projects, this comprehensive guide will ensure your uhmwpe ropes are perfectly matched to your load requirements.
The most striking feature of uhmwpe ropes is that they are roughly 7 to 10 times stronger than steel wire of the same weight. When you transition from steel to synthetic, you cannot use a 1:1 diameter ratio. If you replaced a 20mm steel wire with a 20mm UHMWPE rope, you would likely end up with a line that is significantly stronger than your winch can handle.
Before picking a diameter, you must know your Working Load Limit (WLL). Most industrial standards require a Safety Factor (SF) of 5:1 for towing. This means if you intend to pull a 10-ton load, your chosen diameter of uhmwpe ropes must have a Minimum Breaking Load of at least 50 tons. Because UHMWPE is so High strength, you can often achieve this with a much thinner, more manageable line than traditional nylon or polyester.
A thinner diameter reduces the physical strain on your crew. It is easier to deploy, retrieve, and stow. However, diameter also dictates surface area. A slightly larger diameter provides better grip on winch drums and distributes heat more effectively. For Industrial lifting, we often recommend a diameter that provides at least 15% more capacity than the absolute minimum to account for long-term wear and UV exposure.

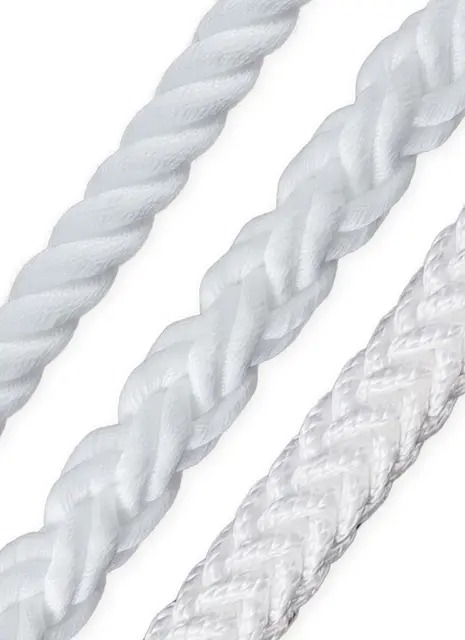

The way the fibers are woven significantly impacts the effective diameter and how the rope behaves under tension. When selecting uhmwpe ropes, you must choose between a single (hollow) braid or a jacketed (double) braid.

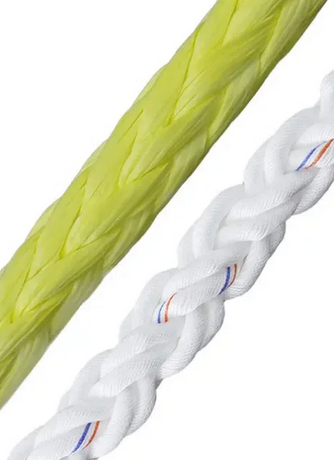

A 12-strand Hollow braided construction is the industry standard for many towing applications. It is easy to splice and inspect. Because there is no core-to-cover slippage, the diameter remains very consistent under load. However, a Hollow braided rope is more exposed to the elements. If your environment is particularly "trashy" or involves sharp edges, the lack of a protective jacket means you might need to increase the diameter slightly to provide a "sacrificial" layer of fiber.

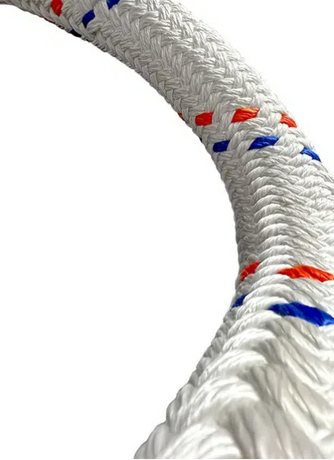

For the ultimate in protection, a Double braided uhmwpe ropes design features a UHMWPE core protected by a high-tenacity polyester or UHMWPE jacket. The jacket adds to the overall diameter but does not necessarily add to the tensile strength. If your winch has limited drum space, you must account for this extra "bulk." The benefit is a highly Durable line that is incredibly Abrasion resistant. Procurement officers often prefer this for mooring lines because the jacket absorbs the "chaffing" while the core maintains the High strength integrity.
Mooring is a static but high-tension application. Wind, current, and tide create constant "surging" forces. Choosing the right diameter here isn't just about the weight of the ship; it's about the environmental energy the rope must absorb.
When a ship is moored, the uhmwpe ropes act as tendons. Because UHMWPE has very low stretch (elongation), it does not "give" like nylon. This means the shock loads are much higher. To compensate, experts often suggest a slightly larger diameter than a simple weight calculation would suggest. This extra mass helps dampen vibrations and provides more material to resist the heat generated by friction against fairleads.
A common mistake is buying a High strength rope that is too thin for the existing ship's hardware. If the diameter is too small, it can "bite" into the grooves of an old bollard or get pinched in a fairlead. We recommend that the rope diameter should be at least 1/3 the diameter of the smallest curved surface it passes over to prevent acute bending fatigue.
Creep is the slow, permanent elongation of synthetic fibers under constant load. Thicker diameter uhmwpe ropes experience less stress per square millimeter of fiber. By choosing a diameter that operates at only 15-20% of its MBL during standard mooring, you significantly extend the life of the product and delay the onset of creep-related failure.
Abrasion is the "silent killer" of synthetic lines. Even the best uhmwpe ropes will fail if the outer fibers are shredded by a rusty deck or a rough quay wall. This is why coatings are an essential part of the diameter conversation.
Most High-quality UHMWPE lines are treated with a polyurethane (PU) coating. While this doesn't change the nominal diameter much, it makes the rope more Abrasion resistant. For extreme environments, some manufacturers add a "braided shield" over the high-wear sections. This increases the diameter in specific areas but keeps the rest of the line light and Flexible.
As a rope wears, its diameter physically decreases. An expert knows that a 10% reduction in diameter often correlates to a much larger loss in breaking strength.
Minor Abrasion: Fuzzy surface (harmless).
Major Abrasion: Flattened sections or visible "glazing" (indicates heat damage).
Diameter Reduction: If a 30mm rope measures 27mm under tension, it must be retired.
Using Durable uhmwpe ropes with a factory-applied protective tint also helps in inspection. When the color wears off, it serves as a visual cue that the diameter may be reaching a critical wear limit.
You can have the strongest rope in the world, but if it doesn't fit on your winch, it is useless. Every winch has a "Length x Diameter" capacity. Increasing the diameter of your uhmwpe ropes will directly reduce the length of line you can carry.
When High strength ropes are under extreme tension, a thin line can "bury" itself between the wraps of the layer below. This causes the rope to jam or snap during payout. To prevent this, experts choose a diameter that fills the drum grooves properly. In some cases, a slightly larger diameter is actually safer because it prevents this interlocking behavior.
The ratio of the winch drum diameter (D) to the rope diameter (d) is vital. For UHMWPE, a D/d ratio of at least 20:1 is recommended. If your drum is 400mm, your maximum rope diameter should be 20mm. Using a thicker rope on a small drum causes internal fiber friction, which generates heat and weakens the uhmwpe ropes from the inside out.
| Winch Drum Diameter (D) | Recommended Max Rope Diameter (d) | Application Suitability |
| 300 mm | 15 mm | Light Towing / Ribs |
| 600 mm | 30 mm | Tugboats / Commercial |
| 1000 mm | 50 mm | Industrial lifting / Tanker Mooring |
In Industrial lifting, the consequences of a rope failure are immediate and often fatal. Unlike mooring, where a rope might snap and fall into the water, a lifting failure drops a payload from height.
When using uhmwpe ropes for slings, the effective diameter changes based on the "hitch" type. A basket hitch effectively doubles the capacity, while a choker hitch reduces it. Because UHMWPE is so soft and Flexible, it is tempting to use very thin lines for heavy lifts. However, you must ensure the diameter is sufficient to prevent the rope from cutting into the edges of the load.
Lifting isn't always smooth. A crane might "jerk" the load, creating a dynamic spike. We recommend choosing a diameter of uhmwpe ropes that accounts for a 2.0x dynamic factor. If your load is 50 tons, spec the rope as if the load is 100 tons. This ensures the line remains within its elastic limit and maintains its structural integrity over hundreds of lift cycles.
During a fast lower or a heavy lift, friction can create heat. Thicker uhmwpe ropes have a better volume-to-surface-area ratio for dissipating this heat. While UHMWPE is an amazing material, it has a low melting point (approx 145°C). Ensuring the diameter is robust enough to stay cool under friction is a hallmark of an expert rigging plan.
For many procurement officers, the transition from steel to synthetic is the most confusing part of the process. This table helps visualize the trade-offs.
| Factor | Steel Wire Rope | UHMWPE Ropes |
| Weight for same MBL | 100% (Heavy) | 12-15% (Ultra Light) |
| Diameter for same MBL | Thinner | Slightly Thicker (typically) |
| Buoyancy | Sinks | Floats |
| Corrosion | High (Rusts) | Zero (Inert) |
| Handling | Needs gloves/winch | Hand-manageable |
| Safety Factor Req. | 3:1 to 5:1 | 5:1 to 7:1 |
As the data shows, while you might end up with a slightly larger diameter when using uhmwpe ropes compared to high-tensile steel, the weight savings are so massive that it transforms the logistics of the entire operation.
To wrap up your selection process, follow this "Expert Insight" checklist:
Determine MBL: Multiply your maximum expected load by at least 5 (Safety Factor).
Check Drum Capacity: Ensure the length fits the winch at that diameter.
Evaluate Construction: Choose Hollow braided for simplicity or Double braided for protection.
Hardware Check: Ensure bollards and sheaves are compatible with the new diameter.
Environmental Scan: Increase diameter or add a jacket if the area is highly abrasive.
Choosing the right diameter for uhmwpe ropes is a balance of physics and practical deck-work. By focusing on the Minimum Breaking Load, understanding construction differences, and respecting the constraints of your existing hardware, you can maximize the lifespan of your lines. UHMWPE is a High strength and Durable material, but its performance depends entirely on the precision of your specifications. Don't just buy a rope—buy a solution that fits your winch, your crew, and your safety standards.
Q: Can I replace my 24mm steel wire with 24mm UHMWPE?
A: You likely can, and it will be much stronger and lighter. However, check your winch pull capacity. If the rope is much stronger than the winch, you could damage the winch structure before the rope breaks.
Q: Why do my uhmwpe ropes look "flat" after use?
A: This is normal for Hollow braided constructions. The rope flattens as the air is squeezed out under tension. As long as there are no cut strands and the volume hasn't decreased significantly, it is safe to use.
Q: How does salt water affect the diameter?
A: Salt water does not affect the fiber, but salt crystals can get trapped between the strands and act like sandpaper. Always rinse your High-quality ropes with fresh water to maintain their Abrasion resistant properties.
